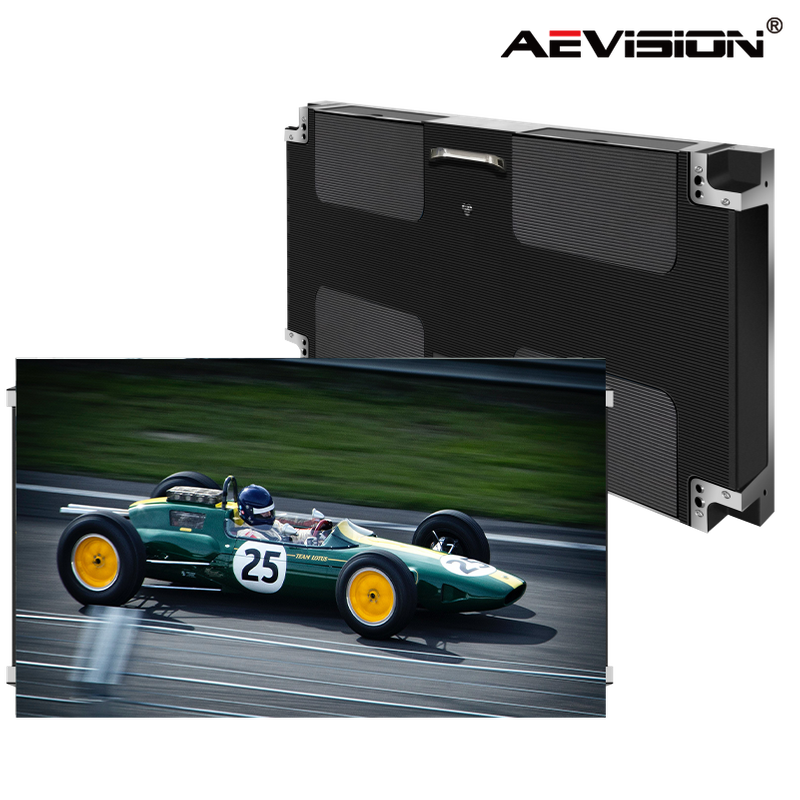

The spatial footprint, structural prerequisites, and operational downtime dictate the success of any large-scale display installation. Selecting the wrong maintenance access architecture leads to wasted commercial real estate. It increases the risk of catastrophic pixel damage during routine servicing. It also causes prolonged system downtime in mission-critical environments. Evaluating the structural and operational trade-offs between LED display wall front vs rear maintenance is a mandatory step before finalizing architectural drawings. You must determine the optimal service architecture based on the installation environment, application criticality, pixel pitch, and thermal management constraints. We will break down the physical mechanics, structural requirements, and operational realities of both access methods. This ensures your next deployment maximizes usable floor space while protecting delicate hardware components from unnecessary handling damage.
Establishing success criteria goes beyond visual performance. You must define Mean Time To Repair (MTTR) for your specific facility. You must calculate structural load limits on the mounting surface. Long-term serviceability dictates the physical layout of the room. Proper LED video wall installation requirements demand a thorough site survey before specifying hardware. We always check the wall composition, whether it is steel stud, concrete, or reinforced plywood backing. A typical die-cast aluminum cabinet weighs between 15 and 25 pounds. When you stack ten of these vertically, the sheer weight requires substantial structural backing. If you opt for a rear-service swing mount, the hinge mechanism must support the entire cantilevered load without sagging.
Understand ADA compliance regulations for public spaces. The Americans with Disabilities Act requires wall-mounted objects to protrude no more than 4 inches into public corridors. Front-service flush mounting helps meet this strict regulation. It keeps walkways clear and compliant without sacrificing display size. If you build a rear-service structure in a hallway, you will likely violate this code unless you recess the entire build into a dedicated wall cavity.
Calculate spatial limitations accurately. Dedicated service areas require valuable square footage. Compare the real estate impact of rear access against the architectural integration of flush mounting. Every inch of depth behind the screen represents unusable floor space. In a high-rent corporate lobby, giving up three feet of depth across a thirty-foot wall is a massive architectural penalty.
Assess downtime tolerance for your specific application. Determine how quickly technicians must hot-swap a module, power supply, or data receiving card during a failure event. Mission-critical environments cannot tolerate extended outages for complex hardware disassembly. If a power supply fails during a live broadcast, the technician needs immediate access to the chassis.
Analyze thermal realities and environmental conditions. The chosen maintenance architecture directly impacts airflow. It determines the cooling requirements of the entire display system. Trapped heat degrades LED lifespan and shifts color accuracy over time. We often see flush-mounted systems fail prematurely because the integrator ignored the HVAC routing requirements for the trapped rear heat.
A front maintenance LED display requires specialized extraction mechanisms. Technicians use magnetic extraction tools to pull modules forward. They deploy motorized vacuum suction devices for tighter pixel pitches. Some systems utilize specialized front-accessible locking screws hidden between pixel columns. You place the tool directly on the face of the module, engage the suction or magnet, and pull straight back. The motorized vacuum tool creates a perfect seal against the LED mask. It ensures uniform pressure across the module surface. If a technician tries to pry a module out with a flathead screwdriver, they will instantly destroy hundreds of dollars worth of diodes. The specialized tools prevent this by pulling the module perfectly perpendicular to the frame.
Engineers design component layering specifically for front access. Power supplies, hub boards, and receiving cards sit directly behind the LED module. Removing the front LED tile exposes the internal electronics. This allows for direct front-facing extraction of critical components. You do not need to walk behind the wall to swap a dead receiving card.
Precision mounting systems are absolutely necessary. Specialized mounting frames support the cabinet structure. Scissor mounts or 6-axis adjustable brackets ensure perfect Z-axis alignment. This alignment is critical after replacing a module to maintain a seamless visual canvas. If the Z-axis is off by even a millimeter, you will see a visible seam on the wall.
Diode vulnerability is a major concern during servicing. Technicians face a high risk of edge damage. Pixel shearing occurs when extracting tightly aligned modules. This risk scales exponentially with fine pixel pitch displays below 1.5mm. When you pull a module out, the adjacent modules can easily catch the edge diodes and snap them off.
Thermal trapping presents ongoing operational challenges. The lack of a rear cavity traps heat against the mounting surface. Strict ambient temperature controls become necessary. You must route HVAC airflow specifically across the front face of the display. We often install dedicated cooling fans above the display recess to force air down the face of the tiles.
Complex component swaps increase handling risk. Replacing a failed power supply often requires removing multiple delicate LED modules first. This exposes functional modules to potential physical damage during a routine power supply replacement. You are handling the most expensive part of the wall just to fix a cheap power unit.
Rear maintenance demands specific structural requirements. You need a dedicated catwalk or a built-in service corridor. Alternatively, a heavy-duty swing-out mounting frame is mandatory. The structure must support the weight of the display and the service technicians. We typically specify a minimum of 30 inches of walking clearance behind the cabinets.

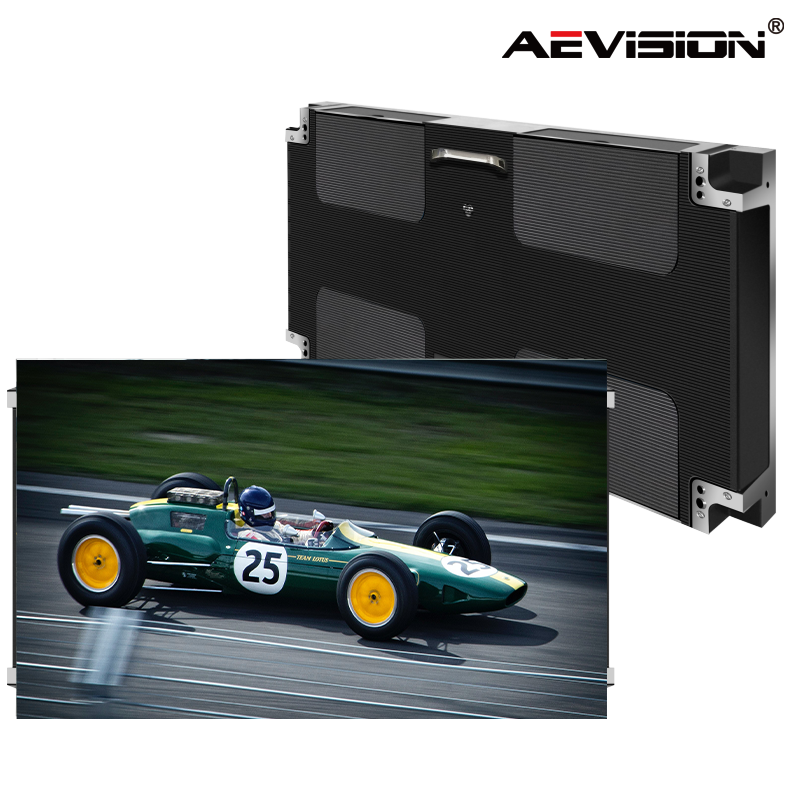

Cabinet design focuses on rear accessibility. Manufacturers utilize rear-opening doors or removable back panels. Exposed chassis designs provide immediate access to internal electronics. Technicians open the back of the cabinet to reach power and data components. The LED modules remain securely fastened to the front of the chassis during this process. In a rear-service setup, cable management is vastly superior. Technicians can neatly dress power and data cables along the rear chassis using zip ties and cable trays. This prevents the messy cabling that often plagues tight front-service installations. Clean cabling reduces electromagnetic interference and makes tracing a bad data line a five-minute job instead of a two-hour ordeal.
The footprint penalty is significant for facility planning. You require 24 to 36 inches of dedicated, unobstructed space behind the wall. This complies with standard safety and serviceability codes. It permanently consumes usable room depth. You cannot use this space for desks, storage, or foot traffic.
Structural complexity increases the initial build timeline. Building specialized support structures and catwalks requires careful engineering. You must ensure adequate lighting, power outlets, and safety rails reside within the service corridor. The steel fabrication alone can add weeks to the project schedule.
| Feature | Front Maintenance | Rear Maintenance |
|---|---|---|
| Space Requirement | Minimal (Flush mount possible) | High (24-36 inches rear clearance) |
| Component Access | Through the front LED modules | Through rear cabinet doors |
| Risk of Pixel Damage | High (Requires module removal) | Low (Modules remain untouched) |
| Cooling Method | Active HVAC routing required | Passive convection via rear cavity |
| Ideal Application | Corporate lobbies, retail, ADA corridors | Command centers, outdoor billboards |
Uptime is critical for a LED display wall for command centers. 24/7 Network Operations Centers heavily favor rear maintenance. Technicians do not obstruct operators' lines of sight during emergency repairs. The screen remains active while hardware is swapped behind the scenes. In a 911 dispatch center, the video wall displays real-time mapping and camera feeds. If a power supply fails, the operators cannot stop working. A rear-service architecture allows a technician to enter the dark room behind the wall, swap the power supply, and restore the screen section without the dispatchers even noticing the physical repair process.
Redundancy accessibility is streamlined. Accessing dual power supplies and redundant data paths is easier from a rear service corridor. Technicians can trace cabling faults quickly without dismantling the primary viewing surface. You can visually inspect the data loop and power daisy chains instantly.
Retail environments must maximize usable space. Premium corporate lobbies almost exclusively utilize front maintenance. It preserves square footage for foot traffic and merchandise. It allows for seamless architectural integration into existing wall structures. You can build the display directly into a custom wood veneer wall.
Aesthetic integration drives the design process. Flush mounting capabilities align with modern interior design standards. Displays sit perfectly flat against the wall. This meets strict ADA protrusion regulations in public walkways. Architects prefer this method because it hides the bulky structural elements.
Environmental protection is paramount for outdoor installations. Large-scale outdoor billboards rely on rear maintenance. Solid front faces maintain strict IP65/IP68 weatherproofing. Street-level digital furniture often requires front-service designs due to spatial limits, requiring specialized sealed modules. When you build a highway billboard, you build a catwalk behind it to protect the internal electronics from rain and snow during servicing.
Broadcast studios require hybrid approaches. A modular LED display wall system can offer dual serviceability. Front and rear access adapts to varying set designs. It supports rapid deployment requirements for temporary live event staging. Rental and staging companies buy dual-service cabinets so they can adapt to whatever the venue requires on show day.
Verify tooling systems before finalizing the purchase. Ask your commercial LED display wall supplier if they provide standardized or proprietary extraction tools. Determine the replacement cost of those tools. Proprietary vacuum tools can delay maintenance if lost or broken. We always order three backup tools for every site to prevent downtime.
Understand warranty implications clearly. Clarify how the chosen maintenance method impacts the manufacturer's warranty. Focus specifically on accidental pixel damage during servicing. Determine who holds liability if a module is damaged during a front-extraction procedure. Many manufacturers void the warranty if you shear edge pixels during a clumsy extraction.
Evaluate structural engineering support capabilities. Check the supplier's ability to provide stamped structural drawings. This applies to rear-service catwalks or front-service custom mounting brackets. Proper documentation speeds up the local permitting process. You cannot pull a building permit for a heavy steel structure without stamped drawings.
Ensure strict module batching and calibration. The supplier must provide spare modules from the exact same LED bin batch. Front-service replacements require precise color calibration. They must match the surrounding flush modules perfectly to avoid a patchwork appearance. Always negotiate a spare parts package with your initial order. This package should include extra LED modules, power supplies, receiving cards, and hub boards. Having these parts on-site reduces your MTTR from weeks to minutes. If you wait to order a replacement module until after a failure, the new module will likely come from a different LED batch, resulting in a permanent color mismatch on your wall.
To ensure a successful deployment and long-term operational stability, execute the following steps before finalizing your architectural plans:
A: A rear maintenance LED display wall typically requires a minimum of 24 to 36 inches of unobstructed clearance behind the cabinets. This space accommodates service technicians, allows doors to open fully, and meets standard safety and building codes for service corridors.
A: Conversion is generally not possible without replacing the cabinets. Front and rear maintenance displays utilize entirely different chassis designs, component layouts, and mounting structures. You must select the correct maintenance architecture during the initial design phase.
A: Technicians use magnetic extraction handles for standard modules. For fine pixel pitch displays, motorized vacuum suction tools are required to pull the module straight out without shearing edge pixels. Some systems also require specialized long-reach screwdrivers for hidden locking mechanisms.
A: Rear maintenance systems utilize the open rear cavity for efficient passive convection cooling. Front maintenance systems, mounted flush against a wall, trap heat. They require active HVAC routing to push cool air across the face and edges of the display to prevent overheating.
A: Ultra-fine pixel pitches have highly exposed, fragile diodes at the edges. Front extraction significantly increases the risk of damaging these pixels. Therefore, rear maintenance is strongly preferred for fine pixel pitch displays to avoid handling the delicate front modules.
A: Yes, in many public corridors. The ADA mandates that wall-mounted objects protrude no more than 4 inches into walking paths. Front maintenance allows the display to be recessed or flush-mounted to meet this requirement, whereas rear maintenance structures typically exceed protrusion limits.
