Arriving on site to a black screen eats into your project margins. You lose time diagnosing display faults instead of finishing the deployment. Clients lose trust when their surveillance feeds go dark. You have to isolate the root cause fast. The challenge is separating simple cable faults from DVR configuration errors, power delivery drops, or dead hardware. Consumer-grade screens often fail under continuous operation, which muddies the diagnostic waters. A systematic approach cuts through the noise. You can resolve most immediate signal drops with structured troubleshooting. However, recurring display failures mean your hardware selection is inadequate. Standard desktop monitors cannot handle continuous video rendering. You need purpose-built surveillance displays to ensure 24/7 reliability. Upgrading your hardware strategy stops repeat service calls and secures the long-term stability of your installation.
When you face a blank screen, establish a baseline before pulling cables. Verify the power states of all connected devices. Check the LED standby indicators on the monitor bezel. An amber or red light means power is present but no video signal is reaching the board. A dark LED points to a dead power supply or a tripped breaker.
Next, confirm the recording unit is active. Listen to the DVR or NVR chassis. You should hear cooling fans spinning and hard drives booting up. If the unit is silent, the display is just reacting to a dead source. Follow this sequence when arriving on site:
Power delivery issues often look like video signal failures. Check the Uninterruptible Power Supplies (UPS) and surge protectors. Installers frequently find the NVR plugged into the battery-backup side of a UPS, while the monitor sits on the surge-only side. A minor power dip kills the monitor while the NVR keeps recording.
Inspect wall outlets with a digital multimeter. Faulty surge protectors can drop voltage just enough to light the monitor's LED but fail to ignite the backlight. For example, a 12V DC adapter dropping to 10.5V under load will cause a failure. Bypass the UPS temporarily. Plug the display directly into a known-working wall outlet to isolate power delivery faults.
The fastest way to isolate a fault is bypassing the existing setup. Carry a portable test monitor or a laptop with an HDMI capture card. Disconnect the video cable from the client's display and plug it into your test monitor. If your test screen shows the camera grid, the client's monitor is dead.
If your test monitor also shows a CCTV monitor no signal warning, the fault is upstream. The issue is either the video cable or the NVR output stage. You can reverse this test by plugging your laptop HDMI output into the client's monitor. If the laptop screen mirrors, the monitor input board works. Mastering CCTV monitor installation troubleshooting requires this logical elimination process.
Intermittent signal loss often comes from ground loop interference or severe voltage drops. This happens frequently in older analog or hybrid coaxial jobs. A ground loop occurs when multiple devices connect to ground via different paths. The coaxial shielding acts as an unintended ground path, creating a voltage differential. This introduces electrical noise that disrupts the video sync pulse. The screen rolls or goes black.
Failing power adapters also cause blackouts. Aging power supply capacitors struggle to deliver consistent amperage. When the monitor draws more power for a bright scene, the adapter fails, and the screen drops out.
| Symptom | Likely Cause | Field Solution |
|---|---|---|
| Rolling horizontal lines before blackout | Ground loop interference | Install a ground loop isolator on the coaxial run. |
| Screen drops out during bright scenes | Failing power adapter (amperage drop) | Swap with a known-good 12V/5A power supply. |
| Monitor LED flickers rapidly | Voltage drop at the outlet | Test outlet with multimeter; bypass faulty surge protector. |
Modern surveillance systems rely on HDMI, but this interface suffers from handshake failures. The Extended Display Identification Data (EDID) protocol lets the monitor and NVR negotiate resolutions over the I2C bus. If this handshake fails, the NVR stops transmitting video. Inspect the CCTV monitor HDMI input for physical damage. Look for bent pins, dust, or port degradation from heavy cables pulling downward.
Incompatible HDMI versions cause silent failures. An older HDMI 1.4 monitor might reject a 4K 60Hz signal from a new NVR. If you suspect an EDID failure, use an EDID emulator. This passthrough device forces a successful handshake by feeding a pre-programmed resolution profile to the NVR.
Security upgrades often mix new NVRs with existing control room displays. This requires adapters. Cheap VGA-to-HDMI or BNC-to-VGA active adapters fail constantly. These low-quality converters overheat and drop the video signal. Avoid active adapters. Use displays that natively support the required connections.
For systems using BNC loop-through connections, proper termination is mandatory. If a BNC video signal lacks a 75-ohm resistor at the end of the line, you get an impedance mismatch. The signal reflects back down the cable, creating standing waves. This reflection causes ghosting, image tearing, and signal dropouts. Verify the termination switch on the back of the monitor is set correctly based on its position in the daisy chain.
Physical cables degrade from environmental stress. Temperature swings, moisture, and physical tension break down internal shielding. Installers must respect strict distance limitations. Standard passive HDMI cables experience severe signal degradation past 15 meters. The digital signal attenuates, resulting in a black screen.
Electromagnetic Interference (EMI) corrupts video signals. Running unshielded cables parallel to high-voltage power lines induces noise that breaks the digital sync.
| Cable Type | Maximum Passive Distance | Solution for Longer Runs |
|---|---|---|
| HDMI (Standard) | 15 meters (50 feet) | Active HDMI repeaters or Fiber Optic HDMI |
| VGA | 30 meters (100 feet) | VGA over Cat5e/Cat6 extenders |
| BNC (RG59 Coax) | 200 meters (650 feet) | Active video baluns or upgrade to RG6 |
The most frequent configuration error is a resolution mismatch. Installers connect a new NVR outputting a 4K (3840x2160) signal to an older 1080p display. The monitor processing board cannot scale the incoming signal down. You get an "Out of Range" or "Unsupported Format" error. Refresh rate conflicts, like feeding a 50Hz PAL signal to a 60Hz NTSC monitor, cause identical failures.
To fix this, you have to access the NVR blindly:
The monitor will instantly acquire the signal and display the camera grid.
When troubleshooting eliminates cables and NVR configurations, evaluate the physical monitor. Differentiating between a dead LCD panel and a dead input board saves time. Look for backlight bleed. If the screen is black but glows faintly at the edges in a dark room, the backlight works. The LCD panel is just not receiving image data. This points to a failed mainboard or T-CON (Timing Control) board.
Perform the flashlight test to check for a dead backlight. Turn the monitor on and shine a bright flashlight at a sharp angle against the screen. If you faintly see the camera grid, the LCD panel works, but the LED backlight is dead. Backlight failure is a common symptom of using consumer-grade displays past their intended lifespan.
Sometimes the hardware is physically intact, but the software driving the video output crashes. NVRs and smart monitors run embedded operating systems that freeze. A corrupted display driver within the NVR halts the HDMI output. In these scenarios, perform a hard reboot. Disconnect power from both the NVR and the monitor for two minutes to clear volatile memory.
If the issue persists, perform a factory reset of the monitor display settings using the physical OSD buttons. Check the manufacturer website for NVR firmware updates. Outdated firmware contains bugs related to HDMI handshake protocols. Flashing the NVR with the latest firmware permanently resolves intermittent signal drops.
A successful surveillance display deployment requires zero downtime. Security personnel cannot protect assets if the screens go dark. Accurate color reproduction is mandatory. Operators must identify vehicle colors, clothing details, and suspect features during an incident. Wide viewing angles are necessary for control rooms where multiple operators view the same screen from different desks.
Standard monitors do not meet these field requirements. Deploying cheap displays to save upfront costs guarantees future service calls. The true cost of a consumer display includes the labor hours spent replacing it and the security vulnerabilities created during its downtime.
Consumer televisions and desktop monitors are engineered for 4 to 8 hours of daily use. They use lower-grade capacitors and minimal thermal shielding. When forced into 24/7 continuous operation, these components overheat rapidly. The excessive heat degrades the internal power supply, causing random shutdowns and eventual hardware death.
Consumer panels suffer from severe image retention, known as burn-in. Security systems display static camera grids for weeks at a time. On a consumer display, the liquid crystals degrade under static voltage, permanently etching grid lines into the LCD panel. A CCTV display for security systems uses specialized anti-burn-in technology and pixel-shifting algorithms to prevent this damage. This ensures clear visibility over years of continuous use.
Display failures in commercial, medical, or high-security environments carry massive liability risks. If an assault, theft, or safety violation occurs while the security monitor shows a "no signal" error, the facility faces legal exposure. Compliance regulations in gaming, banking, and healthcare mandate uninterrupted video surveillance.
Using unrated consumer hardware in these environments violates operational protocols. Installers who install inadequate displays risk damaging their reputation and facing breach-of-contract claims. Recommending purpose-built commercial hardware protects the client facility and your business from legal exposure.

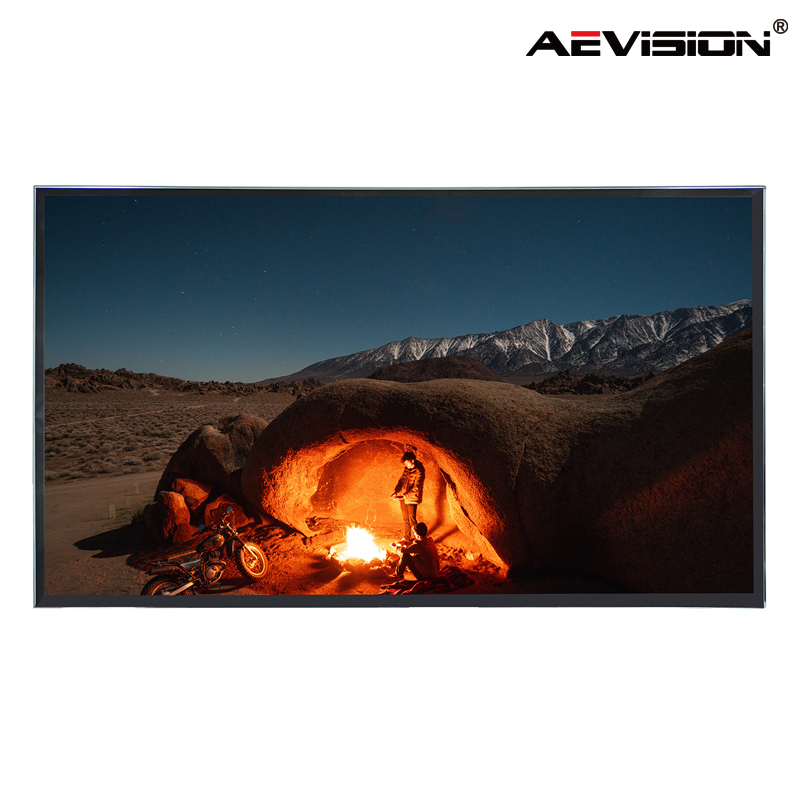

When upgrading a control room, map technical specifications directly to operational benefits. A professional CCTV monitor features an industrial-grade IPS panel. This panel technology delivers 178-degree viewing angles. The image remains color-accurate and bright even when viewed from the far side of a security desk.
Industrial panels feature higher brightness ratings and superior contrast ratios. Operators see critical details in dark camera feeds without washing out the image. The integration of 3D comb filters and de-interlacing technology removes video noise from older analog cameras. These features directly improve the operator's ability to detect threats.
Security infrastructure rarely upgrades all at once. Facilities operate hybrid systems, combining legacy analog cameras with modern IP-based NVRs. This requires immense display flexibility. A true multi interface CCTV monitor provides legacy BNC inputs with loop-through capabilities, standard VGA ports, and modern HDMI or DisplayPort connections.
This diverse input array prevents bottlenecking at the display level. You can connect a legacy DVR and a new 4K NVR to the same monitor. Operators switch inputs seamlessly. It future-proofs the installation. As the client migrates entirely to IP cameras, the display hardware remains relevant.
Commercial surveillance displays survive harsh environments. Evaluate the manufacturer Mean Time Between Failures (MTBF) rating. A verifiable MTBF of 50,000 hours or more indicates high-end capacitors, robust thermal management, and durable backlighting. This guarantees years of continuous operation.
Physical durability matters on site. Look for VESA mounting standard compliance to ensure compatibility with heavy-duty control room brackets. Monitors deployed in retail backrooms, industrial warehouses, or manufacturing floors require ruggedized housing to withstand physical impacts. Anti-glare treatments on the glass prevent harsh overhead lighting from obscuring the surveillance feeds.
Choosing the right hardware partner moves beyond comparing unit costs. Evaluate the operational longevity the supplier provides. A reputable security surveillance monitor supplier offers comprehensive commercial warranties, typically spanning three years or more. This demonstrates confidence in their manufacturing quality.
Examine their technical support structure. Direct access to Tier-2 technical support saves you hours of frustration on site. Advanced replacement programs are mandatory. If a monitor fails, a reliable supplier ships a replacement immediately, before receiving the defective unit. This minimizes control room downtime and protects your relationship with the end-user.
Supply chain inconsistency poses a massive risk to large-scale deployments. If you specify a particular monitor model for a 50-screen control room, and the supplier discontinues that model halfway through the project, you face a crisis. Mismatched bezels, varying color temperatures, and different VESA mounting depths ruin the ergonomics of a professional video wall.
Mitigate this risk by partnering with suppliers who control their own manufacturing lines. Specialized manufacturers guarantee long-term SKU availability. They lock in panel specifications and chassis designs for years. A monitor purchased today will perfectly match a monitor purchased two years from now for a system expansion.
Large enterprise deployments require logistical support. Shortlist suppliers who offer dedicated account management for large-scale projects. They should provide bulk project pricing to protect your margins during competitive bidding processes. Consistent inventory availability ensures your installation schedule is never delayed by backordered displays.
Strong suppliers assist with project design. They provide detailed technical specification sheets, CAD drawings for video wall mounting, and power draw calculations. This level of project support allows you to scale your operations confidently. You know your hardware partner can handle the logistical demands of enterprise-level security deployments.
Take the following steps to eliminate display failures and secure your surveillance infrastructure:
A: This indicates a communication failure between the NVR and the display. The most common causes are a resolution mismatch where the NVR outputs a higher resolution than the monitor supports, an HDMI handshake failure, or selecting the incorrect input source on the monitor. Verify the input selection and lower the NVR output resolution via a web interface.
A: We highly discourage using regular computer monitors for continuous surveillance. They are engineered for 4 to 8 hours of daily operation. Running them 24/7 causes rapid capacitor degradation, severe overheating, and permanent image retention from static camera grids. They lack the thermal design required for commercial security environments.
A: You must adjust the NVR output resolution blindly. Connect a laptop to the same local network switch as the NVR. Log into the NVR using its IP address in a web browser. Navigate to the system display settings and lower the output resolution to 1080p or 720p at 60Hz. The monitor will then acquire the signal.
A: Standard passive HDMI cables reliably transmit signals up to 15 meters. Beyond this distance, the digital signal degrades, causing dropouts or a black screen. For longer runs, you must use active HDMI extenders, fiber optic HDMI cables, or HDMI-over-Ethernet adapters to maintain signal integrity.
A: Random blackouts usually stem from power fluctuations, failing power adapters, or ground loop interference on coaxial runs. In non-commercial displays, random blackouts indicate overheating components or failing capacitors struggling to maintain the backlight. Check your surge protectors, test with a new power adapter, and ensure proper ventilation.
A: Professional monitors feature industrial-grade panels rated for 24/7 continuous operation. They include specialized image processing like 3D comb filters for noise reduction, anti-burn-in technology, and robust power supplies. They also offer diverse input options, including BNC loop-through, to support legacy analog and modern IP systems seamlessly.
A: Use the known good testing method. Connect a portable test monitor or laptop capture card to the DVR output. If video appears, the client monitor is faulty. Alternatively, plug a laptop into the client monitor. If the laptop screen mirrors successfully, the monitor works, and the fault lies with the DVR or the cable.
