In commercial AV and control room design, the physical gap between displays dictates visual performance. This gap is the bezel-to-bezel width. It heavily influences your hardware budget and overall system design. Procurement teams frequently overspend on ultra-narrow bezels for environments lacking close-range viewers. Conversely, integrators sometimes compromise critical data visibility. They select wider bezels for close-proximity viewing to reduce upfront hardware expenditures. Evaluating a 1.7mm vs 3.5mm LCD video wall requires moving beyond marketing spec sheets. You must analyze viewing distance carefully. Content type plays a massive role in this decision. Ambient lighting conditions dictate panel brightness requirements. The installation environment introduces physical constraints. We will explore how these variables interact to determine the optimal display configuration. Understanding these factors ensures you deploy a system tailored precisely to your operational needs.
Defining the exact metric prevents procurement errors. The terms "1.7mm" and "3.5mm" refer to the combined bezel-to-bezel width. This measurement represents the total black line between two active image areas. It does not describe the bezel of a single monitor. If a single display has a 0.85mm bezel on one side, joining two panels creates a 1.7mm gap. Understanding this combined measurement ensures accurate architectural planning and manages client expectations effectively.
Technicians measure the BtB width using digital calipers across the seam of two active displays. The measurement includes the inactive black matrix area of the LCD glass, the physical metal or plastic bezel, and the microscopic air gap required for thermal expansion. If you fail to account for the thermal air gap during installation, the panels will expand and shatter. This combined measurement dictates the exact pixel pitch compensation required in your video processor.
Industry terminology often causes confusion during the specification phase. You will frequently see 1.7mm and 1.8mm used interchangeably in AV documentation. This slight variance depends entirely on the underlying panel manufacturer. Different fabrication plants produce slightly different raw glass panels. Both measurements represent the exact same ultra-narrow tier. They offer identical visual performance for all practical commercial applications.
Manufacturing advancements have drastically transformed standard 55-inch displays over the past decade. Early commercial screens featured thick, obtrusive plastic borders. Engineering improvements pushed these borders down to 3.5mm. Subsequent innovations achieved 1.7mm and even sub-1mm options. Despite the availability of premium 0.88mm bezels, 1.7mm and 3.5mm remain the most practical industry standards. They balance visual aesthetics against structural reliability for demanding enterprise deployments.
The standard 3.5mm specification provides exceptional structural integrity. Integrators typically deploy these panels in 49-inch or 55-inch configurations. The thicker metal chassis protects the delicate LCD glass layer securely. This robust design makes the 3.5mm bezel LCD video wall highly reliable. It withstands rigorous handling during complex commercial installations. Technicians can maneuver these screens with a lower risk of accidental edge fracturing.
Maintenance procedures for 3.5mm arrays are straightforward. The robust frames allow technicians to use standard suction cup tools to pull panels forward for service. You do not need specialized edge-protection jigs. This durability reduces the labor hours required for routine maintenance or hardware swaps. Facilities teams can often handle basic troubleshooting without calling in specialized AV integrators.
Ideal use cases revolve around distance and content separation. Large-scale digital signage thrives on this specification. Retail stores, airport terminals, and corporate lobbies utilize them effectively. Viewers in these environments consistently stand further than 6 meters away. At this distance, the human eye naturally blends the 3.5mm gap. The black lines fade into the background of vibrant promotional video content.
Applications displaying distinct content sources also benefit heavily from thicker borders. Security camera grids often assign one camera feed per screen. The 3.5mm bezel acts as a natural physical frame. It separates different video feeds visually. This physical separation helps security operators process multiple distinct data streams simultaneously. The grid structure actually enhances cognitive organization in these specific monitoring scenarios.
Implementation advantages center on durability and budget efficiency. Thicker edges provide superior protection against impact. Shipping, handling, and mounting processes carry inherent physical risks. A 3.5mm frame absorbs minor shocks effectively. This durability lowers the risk of panel breakage during installation. Capital expenditure per panel drops significantly compared to ultra-narrow alternatives. You can allocate those saved funds toward better mounting hardware or advanced control systems.
Limitations become apparent during close-range viewing. The "Windowpane Effect" is the primary drawback. Highly visible black grid lines disrupt continuous macro-imagery. Text spanning across multiple screens becomes difficult to read. Close-proximity viewers will notice the physical separation immediately. This visual disruption makes 3.5mm panels unsuitable for detailed data analysis rooms or executive presentation spaces.

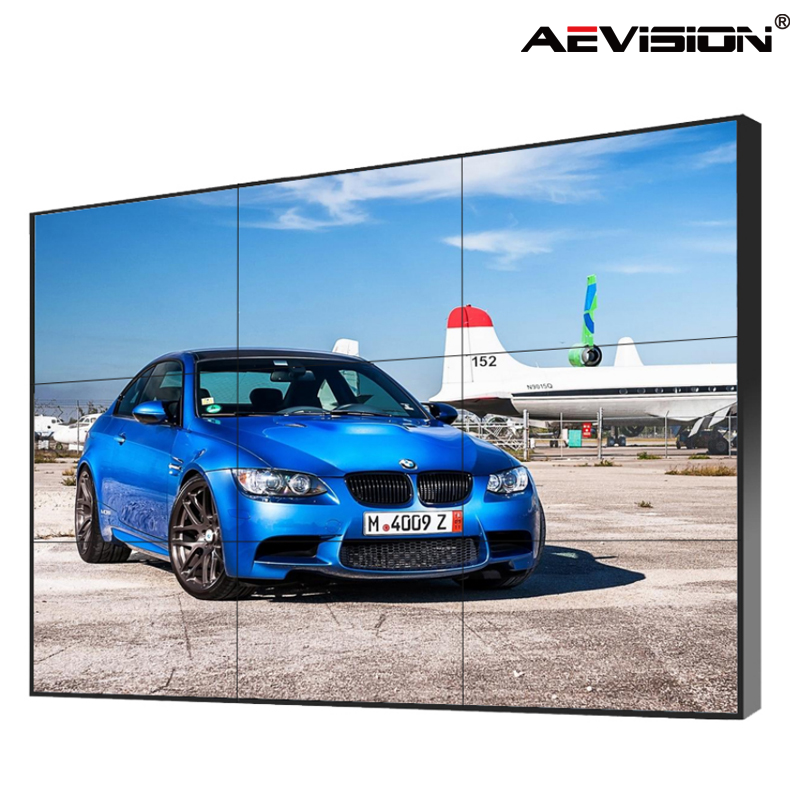

The 1.7mm specification represents the optimal balance in modern display technology. It bridges the gap between ultra-narrow aesthetics and necessary LCD reliability. The 1.7mm bezel LCD video wall minimizes visual interruptions. It provides a nearly seamless digital canvas for critical viewing environments. Engineers designed this specification specifically to handle dense visual information without compromising the structural integrity of the glass.
Achieving a perfect 1.7mm seam requires specialized alignment tools. Installers use laser levels, specialized shims, and multi-axis mounting brackets to dial in the X, Y, and Z axes. A deviation of just 0.5mm on the Z-axis creates a noticeable shadow across the seam. This shadow ruins the seamless illusion and distracts operators. You must budget for highly skilled labor when deploying these ultra-narrow systems.
Ideal use cases demand absolute visual precision. This is the standard specification for an LCD video wall for control rooms. Network operations centers and emergency operations centers rely on them daily. Boardrooms and premium presentation spaces also require this narrow gap. Viewers in these rooms sit in close proximity to the screens. They need to read fine text without physical grid interference disrupting their focus.
Data integrity is the primary implementation advantage. A 3.5mm gap can swallow critical alphanumeric data entirely. Decimal points or thin schematic lines disappear behind thicker bezels. The 1.7mm gap prevents this dangerous information loss. It ensures operators see every single pixel of critical infrastructure maps. In utility monitoring or traffic control, missing a single data point causes severe operational failures.
Creating a seamless illusion elevates the viewing experience significantly. A 1.7mm gap creates a highly cohesive canvas. Single, large-scale images stretch across multiple panels flawlessly. Complex data dashboards look unified and professional. This visual continuity keeps operators focused on the data rather than the display hardware. It reduces eye strain during long monitoring shifts.
Handling fragility remains the most significant limitation. The exposed glass edges are highly susceptible to damage. Chipping or cracking occurs easily if panels are misaligned during installation. Premium pricing reflects both the manufacturing difficulty and the aesthetic value. You face higher initial hardware costs. You also face stricter requirements for precision mounting systems to protect your investment.
The 6-meter viewing distance rule simplifies the decision process. This framework calculates the optimal viewing distance for any display grid. The human eye resolves physical gaps based on angular resolution. At distances exceeding 6 meters, a 3.5mm gap becomes negligible. The eye cannot easily distinguish the black lines. At 2 to 5 meters, the 3.5mm gap looks highly intrusive. You must select 1.7mm panels for these close-range environments to maintain image clarity.
Content mapping dictates your hardware requirements directly. Evaluate your primary use case before purchasing screens. Macro-visuals include large branding graphics and promotional videos. These visuals tolerate thicker bezels well. Micro-visuals include detailed spreadsheets, mapping software, and SCADA systems. These visuals require the thinnest possible gap. Mapping your software interface onto a simulated grid helps identify potential bezel interference.
Video processing hardware plays a massive role in bezel management. Your video wall controller must scale the source image accurately across the physical grid. High-end processors offer sub-pixel bezel compensation. This feature allows you to input the exact physical dimensions of your 1.7mm or 3.5mm gaps. The processor then calculates the precise pixel shift required to maintain image geometry. Cheap processors lack this granular control, resulting in distorted images regardless of your bezel choice.
Software-based bezel compensation adjusts the image to hide the physical gap. It shifts pixels so lines appear continuous behind the bezel. However, this software discards the pixels located "behind" the frame. It cannot replace a physically narrower bezel for text-heavy content. You will still lose letters or numbers if the physical gap is too wide. Software compensation works best for video, not for critical typography.
Ambient lighting and brightness requirements impact visual performance heavily. Evaluate the installation area's lighting conditions carefully. Standard indoor environments typically require 500-nit panels. Spaces featuring massive windows or skylights demand 700-nit panels. Maintaining a powerful visual impact through brightness is critical. A perfectly thin bezel means nothing if the screen looks washed out under harsh fluorescent office lights.
Mounting hardware and infrastructure require meticulous planning. Ultra-narrow 1.7mm panels absolutely require 6-axis micro-adjustment pop-out mounts. These mounts allow integrators to align the glass edges perfectly. Standard mounts lack this necessary precision. Attempting to install 1.7mm panels on cheap, rigid mounts guarantees edge damage during the alignment phase.
Thermal expansion introduces severe risks to tightly packed screens. Displays generate heat during continuous operation. This heat causes the metal and glass components to expand slightly. You must ensure proper spacing to prevent panel-to-panel pressure. This spacing is vastly more critical on 1.7mm displays. Improper spacing causes the glass edges to grind together and crack over time. Proper HVAC planning mitigates this thermal expansion risk.
Hardware investments require a holistic view of the installation ecosystem. Compare the upfront hardware costs between the two bezel sizes. Factor in the mandatory cost of specialized micro-adjustment mounts. Account for potential installation breakage by purchasing spare panels upfront. Evaluate long-term maintenance requirements. A narrow bezel LCD video wall demands precise infrastructure but delivers superior operational clarity for mission-critical tasks.
Vetting an LCD video wall manufacturer requires strict technical criteria. Look for factory-level color calibration capabilities. Ensure they offer comprehensive batch matching for multi-panel orders. Review their warranty terms regarding dead pixels and edge damage carefully. A reputable manufacturer provides detailed documentation on their quality assurance testing protocols.
Shipping logistics demand strict oversight. LCD panels are highly sensitive to vibration and temperature fluctuations during transit. Always specify air-ride suspension trucks for freight delivery. Inspect the shock-watch indicators on the shipping crates immediately upon arrival. If an indicator shows a severe impact, refuse the shipment. Accepting damaged freight leaves you liable for micro-fractures in the glass that may not manifest until the panels heat up during operation.
Securing panels from the same manufacturing run is absolutely mandatory. Different manufacturing batches utilize slightly different LED backlights. Mixing batches results in a checkerboard effect across your wall. Uniform brightness and color temperature rely entirely on strict batch consistency. Always order spare panels from your initial batch. Replacing a broken panel years later with a different batch ruins the visual uniformity of the entire grid.
Designing custom LCD video wall solutions involves tailoring hardware to architectural constraints. Integrators select the optimal bezel choice based on room dimensions. They typically utilize 55-inch panels to maximize the active viewing area while minimizing the total number of seams. Custom configurations must account for structural load-bearing limits. Wall reinforcements are often necessary to support the combined weight of the displays and mounting brackets.
Balancing LCD technology against direct-view LED alternatives requires objective analysis. Direct-view LED offers a truly seamless canvas. It provides massive brightness for large venues and outdoor spaces. However, LED struggles to deliver high-resolution detail at close range without exorbitant costs. LCD remains the most cost-effective choice for high-resolution detail in small rooms. Reserve dvLED for seamless, high-brightness impact in massive architectural spaces.
| Feature | 3.5mm Bezel LCD | 1.7mm Bezel LCD |
|---|---|---|
| Optimal Viewing Distance | Greater than 6 meters | 2 to 5 meters |
| Primary Content Type | Macro-visuals, segmented video feeds | Micro-visuals, SCADA, dense data |
| Structural Durability | High (Thicker protective edges) | Low (Exposed, fragile glass edges) |
| Mounting Requirements | Standard commercial mounts | 6-axis micro-adjustment mounts |
| Ideal Applications | Retail, lobbies, security camera grids | Control rooms, NOCs, boardrooms |
Executing a flawless display deployment requires rigorous site preparation. The physical environment dictates the success of the hardware integration. You must address structural, electrical, and thermal variables before unboxing a single panel.
There is no universal best bezel width for every commercial environment. The choice between a 1.7mm and a 3.5mm display requires a strict calculation. You must evaluate viewing distance, content requirements, ambient light, and hardware budgets objectively. Default to 3.5mm for long-distance viewing, segmented content, and standard digital signage. Mandate 1.7mm for control rooms, data-heavy dashboards, and premium close-range presentation spaces.
To ensure a successful deployment, execute the following steps:
A: The primary difference is the physical gap between the active image areas of adjacent screens. A 1.7mm wall has a combined bezel-to-bezel width of 1.7mm, creating a nearly seamless image. A 3.5mm wall has a thicker grid. This physical gap impacts image continuity and determines whether fine data remains visible across screen seams.
A: Yes, a 3.5mm bezel is generally too thick for modern control rooms. Network operations centers display dense data, schematics, and SCADA systems. A 3.5mm gap can hide critical alphanumeric characters or thin lines. We strongly recommend narrower bezels to prevent dangerous data loss in mission-critical environments.
A: Viewing distance calculations rely on pixel pitch and bezel width. The 6-meter rule is a standard industry guideline. At distances greater than 6 meters, the human eye cannot easily distinguish a 3.5mm gap. For viewers sitting 2 to 5 meters away, you must deploy 1.7mm panels to maintain visual clarity and prevent grid distraction.
A: Yes, ultra-narrow 1.7mm panels are significantly more fragile. The glass edges have minimal metal protection. They are highly susceptible to chipping or cracking during installation. Integrators must use specialized 6-axis micro-adjustment mounts to align the screens perfectly and prevent the glass edges from grinding together.
A: Software-based bezel compensation adjusts the image to make lines appear continuous behind the physical frame. However, it achieves this by hiding the pixels that fall under the bezel area. While this fixes image geometry for large pictures, it deletes parts of text and fine lines, making it unsuitable for data-heavy content.
A: Choose direct-view LED for massive venues requiring a truly seamless canvas and extremely high brightness. LED excels in auditoriums and outdoor spaces. Choose LCD for smaller rooms requiring cost-effective, high-resolution detail at close range. LCD remains the superior choice for control rooms where operators need to read fine text.
