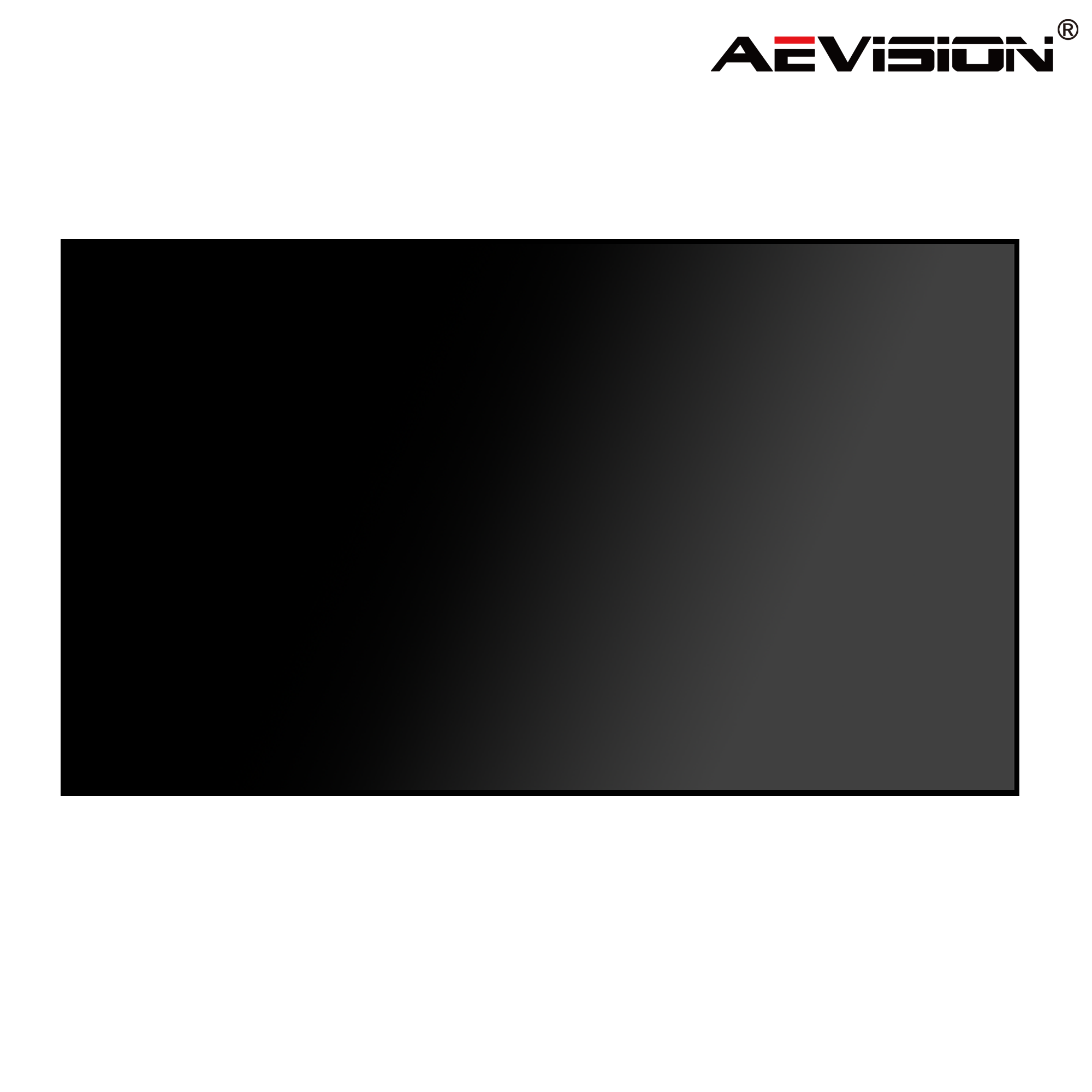

1.7MM Gap Splicing Ultra-high-definition Splicing Display

5 0 Reviews

LCD splicing screen, can be spliced by a block of LCD panels into a large screen, now the mainstream LCD splicing screen size are: 46 inch, 49 inch, 55 inch, the splicing gap has 3.5mm, 1.8mm, 1.7mm, 0.88mm. Its use range is particularly wide, mainly used for exhibition display, shopping mall advertising, conference government, monitoring and command, etc.. It is not only good value for money, but also has a unique advantage!

Availability:

Quantity:



Inquire Add to Basket

Brand:
AEVISION

Product Description

Product Description

Features：

1、Using original industrial grade IPS (DID) LCD splicing panel.

2、Adopt direct down LED backlight technology and shimity of screen brightness.

With 1920×1080/3840×2160 resolution, it can restore ultra-high resolution original image display by splicing.

3、Adopt high heat dissipation body design, support 7×24 hours continuous work, long service life.

4、Adopt module unit assembly method, support embedded, wall-mounted, hanging and other installation methods.ne out film filter, which can ensure the high unifor.

Product Specifications
Product Line	LCD Splicing Screen
Screen size	55 inches
Appearance color	Black
Splicing thickness	1.7MM

Input/output interface
USB input	1 x USB2.0, Max 480Mbps
Audio speaker output	None
Other	Equipped with Image Engine Accelerator (Magic Wand) for HDMI Ultra HD resolution 4000X2250 display
Signal Input	- Support 1 channel HDMI input, support version 1.4, maximum support 3840X2160 input - Support 1 channel DVI signal signal input, the maximum support 1920X1080 input. - Support RJ45 input and output, access to infrared receiver head and RS232 for device control and debugging. - Support image 180 degree flip, (left and right mirror, up and down mirror, need to customize)
Electrical performance of the whole machine
Input	AC220V 50/60Hz
Power consumption of the whole machine	55 inches: ≤200w
Speaker power	No speakers
Main Hardware
Size Model	55 inches
Memory	All hardware architecture, no memory, no storage
Built-in memory	Not supported
Memory Expansion	Not supported
WiFi	Not supported
Operating System	All hardware architecture, no CPU and no OS

Display performance parameters
Product Model	AE-LED55-1.7MM
Backlight Type	LED backlighting
Display size(mm)	1209.6 (H) x 680.4 (V)
Physical Resolution	2K (1920 x 1080)
Peak brightness of the whole machine	500cd/㎡±30
Dynamic Contrast Ratio	4000: 1
Viewing Angle	89/89/89/89
Screen Ratio	16:9
Display color	10Bit, 16.7M
Structure size (unit: mm)
Overall size of the machine (Length×Height×Thickness)	1211.84 (H) x 682.64(V) x 70.05(D)
Net weight of bare machine (KG)	25.3KG
Gross weight of the whole machine (KG)	50.9G (two-pack)

Use Cases

1.7MM gap splicing QLED wall-mounted 7×24 hours LED backlight technology 4K Display HD HD Monitor
