Product Description
The 17 Inch Professional CCTV Monitor delivers precision surveillance capabilities in a compact form factor, ideal for specialized security applications requiring focused monitoring. This rugged display features a 17-inch IPS panel with Full HD resolution (1920×1080) and an impressive pixel density of 136 PPI, ensuring exceptional clarity for close-quarters monitoring of critical areas. Unlike consumer displays, it's engineered for 24/7 continuous operation with a reinforced power supply, heat-dissipating aluminum chassis, and fanless cooling system that eliminates noise—critical for quiet environments like security offices and control rooms. The compact design (396×250×55mm) and lightweight construction (2.8kg) enable flexible installation in space-constrained locations, while its industrial-grade components ensure reliable performance in demanding conditions. Backed by a 3-year warranty covering parts and labor, this professional monitor balances size and performance for targeted security applications.
Specification | Value |
Model No | AE-LED17 |
Specification | AE-LED17-LY |
Screen size | 17 inch |
Display resolution | 1920*1080 (3840*2160/30HZ compatible) |
Display ratio | 4 : 3 |
Brightness | 250cd/㎡ (center point, typical value) |
Contrast ratio | 1000:1 |
Viewing angle | 160 degree /170 degree |
Response time | 5ms (Gray To Gray) |
Color depth | 16.7M |
Control Type | Panel |
Power input | 12V/3A |

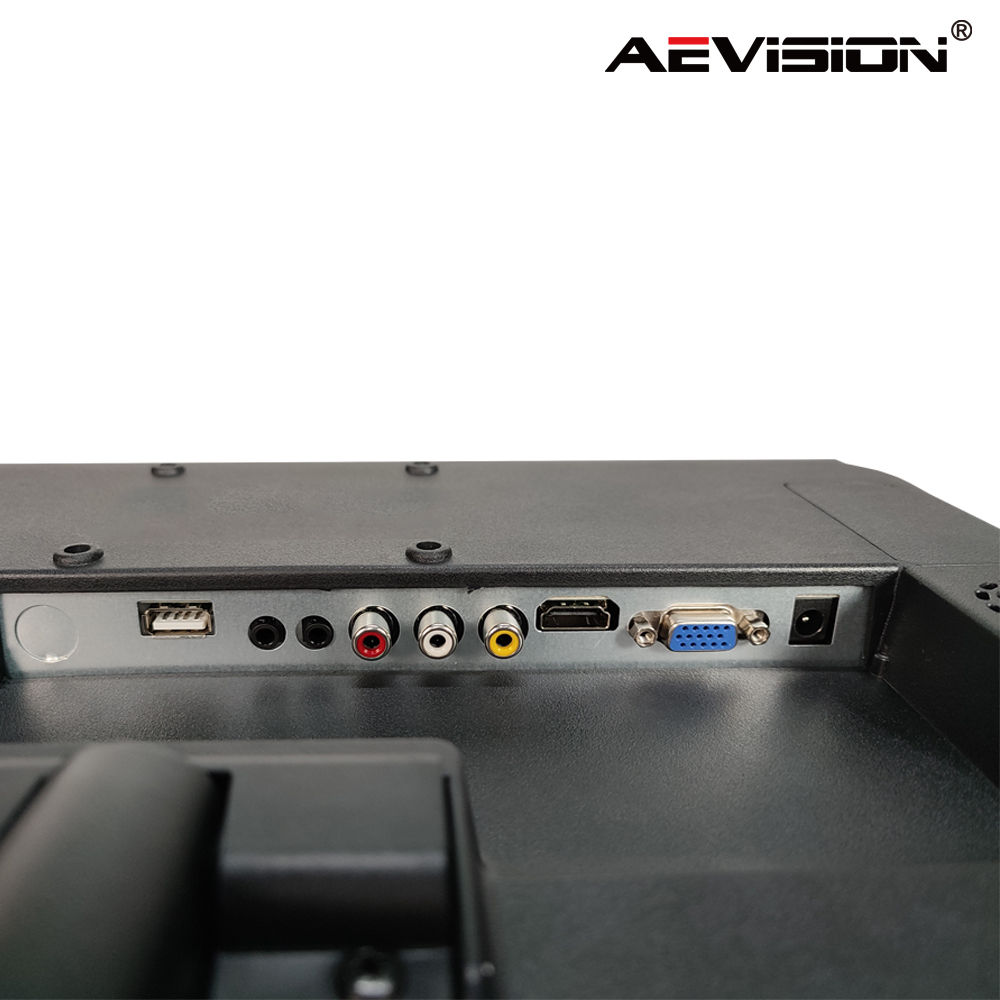

Input interface | HDMI/ VGA/ USB/ CVBS/ Audio input (Customizable) |
Output interface | Audio output |
Overall power consumption | 20W |
Color | Black body |
Material | Flame retardant plastic |
Dimension | 377*315*51 mm (excluding foot height; foot height 80mm) |
Package size (single unit) | 430*445*105 mm |
Installation method | Base, wall hanging (75mm*75mm) |
Net weight / Gross weight | 2.7kg / 3.4kg |
Package size (5 units) | 560*462*455 mm (for five units in one package) |
Package weight | 17.7kg |
Working environment temperature | 20 degrees |
Working environment humidity | 10%-90% RH |
• Precision Display Performance: The 1920×1080 IPS panel delivers exceptional color accuracy (92% sRGB coverage) and 178° wide viewing angles, ensuring consistent image quality from any position—critical for security stations with multiple operators. The 300 cd/m² brightness and 1000:1 contrast ratio maintain visibility in both well-lit offices and dimly lit monitoring rooms.
• Compact Durable Design: Features a rugged aluminum alloy chassis that resists corrosion and electromagnetic interference (EMI), ensuring stable performance in industrial environments. The scratch-resistant screen surface withstands frequent cleaning, while the compact footprint fits easily in rack-mounted enclosures, under-desk mounts, and security kiosks.
• Specialized Security Features: Includes programmable "Surveillance Mode" that optimizes sharpness and contrast for security footage, along with 3D noise reduction that clarifies grainy analog camera feeds. The built-in pixel burn-in protection shifts static images slightly to prevent permanent screen damage from fixed camera positions.
• Flexible Connectivity Options: Equipped with 2×BNC inputs (supporting HD-TVI, HD-CVI, AHD, and analog CVBS signals), 1×HDMI 1.4 port, 1×VGA port, and a BNC loop output for daisy-chaining up to 3 monitors. This versatility ensures compatibility with both legacy and modern security systems during infrastructure upgrades.
• User-Centric Design: Features an intuitive OSD menu with front-panel buttons and optional remote control for easy adjustment of display parameters. The VESA 75×75mm mounting pattern supports wall, desktop, or rack installation, while the removable stand allows for space-efficient placement in tight security booths.
This compact professional monitor excels in security scenarios requiring focused monitoring in limited space:
• Critical Access Points: Monitor server rooms, data centers, and equipment vaults where precise identification of individuals is essential for access control and breach prevention.
• Financial Services: Oversee teller stations, ATM vestibules, and secure storage areas in banks and credit unions, with Full HD resolution capturing transaction details and customer interactions.
• Healthcare Security: Monitor medication storage areas, operating theaters, and restricted patient rooms in hospitals and clinics, with fanless design ensuring quiet operation in sensitive medical environments.
• Industrial Control: Integrate into manufacturing lines and production facilities to display real-time camera feeds of critical machinery, enabling quick visual verification of equipment status and safety compliance.
• Transportation Security: Install in vehicle dashboards, train operator cabins, and airport ground crew stations to provide continuous monitoring of passenger areas and operational zones.
Q: What makes this a "professional" CCTV monitor rather than a consumer display?
A: Unlike consumer monitors designed for 8-12 hours of daily use, this professional model features components rated for 24/7 continuous operation, including a reinforced power supply and heat management system that prevent overheating. It also includes specialized BNC inputs for security cameras, optimized image processing for surveillance footage, and a rugged design that withstands industrial environments—features absent from standard consumer displays.
Q: How does its small size benefit security operations?
A: The compact 17-inch form factor allows installation in space-constrained areas like security booths, equipment racks, and vehicle dashboards where larger monitors won't fit. Its high pixel density (136 PPI) ensures that even small screens display critical details clearly, making it ideal for focused monitoring of specific security points rather than large-area surveillance.
Q: Is it compatible with both analog and digital camera systems?
A: Yes. The dual BNC inputs support legacy analog CVBS cameras (720×480/576) and modern HD analog cameras (HD-TVI, HD-CVI, AHD) up to 1080p resolution. The HDMI port connects to digital IP cameras, NVRs, and video matrices, making it compatible with both existing infrastructure and new installations during system upgrades.
