50-Inch 4K Professional Ultra HD CCTV Monitor

Product Overview

The 50 Inch 4K Professional Ultra HD CCTV Monitor offers an optimal balance of size and resolution for large-scale security operations, combining a 50-inch VA panel with 4K Ultra HD resolution (3840×2160) (pixel density: 88 PPI) to deliver exceptional detail across expansive areas. Built specifically for professional surveillance, it supports 24/7 continuous operation with a rugged design: a steel chassis (resistant to wear and corrosion), a heat-dissipating backplate (with silent fans for temperature control), and IP54 dust/water resistance. The monitor’s 178° viewing angles and 500 cd/m² brightness make it ideal for large control rooms where multiple operators need clear visibility. Whether used as a standalone display or in video wall configurations (up to 25 monitors in 5×5 setup), it provides reliable performance with 16.7 million color reproduction and advanced image enhancement tools—critical for analyzing surveillance footage in diverse lighting conditions.

Product Features

• Superior 4K Performance: The 50-inch screen with 3840×2160 resolution offers 60% more viewing area than 43-inch monitors, reducing the need to switch between camera feeds. The VA panel’s 5000:1 contrast ratio (higher than IPS panels) enhances detail in dark scenes (e.g., parking garages at night), while 8-bit+FRC color depth (16.7 million colors) ensures accurate reproduction of skin tones and object colors—critical for suspect identification. The panel’s brightness uniformity (≥85%) ensures no "dark spots" across the screen, even at maximum brightness.

• Durable & Reliable: Engineered for continuous operation with a stable 100-240V AC power supply (protected against voltage fluctuations) and a heat management system: silent fans (2×80mm) and backplate that dissipates heat efficiently. The steel chassis (1.2mm thick) protects internal components from minor impacts, while the front bezel (12mm) is scratch-resistant—ideal for high-traffic control rooms. The monitor’s LED backlight has a rated lifespan of 50,000 hours, ensuring consistent brightness and color for over 5 years of 24/7 use.

• Advanced Connectivity: Features a comprehensive interface selection to support legacy and modern security systems: 2×HDMI 2.0 ports (4K@60Hz input from IP cameras/NVRs), 4×BNC inputs (HD-TVI/CVI/AHD/analog CVBS up to 1080p) with loop output, 1×VGA port, 2×USB 2.0 ports (external mouse/firmware updates), and 1×RS-232 port (centralized control). The HDMI ports support CEC (Consumer Electronics Control), allowing operators to control the monitor via a DVR/NVR remote—reducing the need for multiple remotes.

• Video Wall Capabilities: Supports seamless splicing for multi-monitor setups with minimal bezel gap (1.5mm), making it ideal for large video walls (e.g., 4×4 configuration in a traffic control center). The RS-232 port enables synchronization of multiple monitors (brightness, contrast, input selection) via software (e.g., Samsung MagicInfo, LG SuperSign), while the monitor’s "Video Wall Mode" automatically adjusts edge blending to eliminate visible seams between displays. It also supports signal loop-through, allowing a single NVR to feed multiple monitors without additional splitters.

Applications

This 50-inch 4K monitor is ideal for security environments requiring large-scale coverage and reliability:

• Stadiums & Venues: Monitor crowds in sports stadiums (e.g., football, soccer) and concert venues to detect fights, unauthorized access, or medical emergencies. The 50-inch size covers multiple sections of the venue, while 4K resolution ensures clear visibility of faces in the stands.

• Retail Chains: Provide centralized monitoring for multiple store locations (e.g., a grocery chain with 20+ stores) via networked NVRs. The monitor can display feeds from 16+ stores simultaneously (split-screen mode), allowing headquarters to address incidents in real time (e.g., shoplifting, employee training).

• Industrial Complexes: Oversee manufacturing plants to monitor equipment operation and ensure compliance with safety protocols. The monitor’s durability (IP54, steel chassis) withstands dust and vibration, while 4K resolution ensures clear visibility of gauges and machinery—preventing accidents.

FAQ

Q: How does this monitor handle low-light surveillance footage?

A: The monitor’s 5000:1 contrast ratio and advanced image enhancement tools improve visibility in low-light conditions. Backlight compensation brightens dark areas of the footage (e.g., a dimly lit alley) without overexposing bright areas, while digital reduces "snow" noise in analog feeds. For extremely dark footage, the "Night Mode" preset lowers brightness and increases contrast, revealing details like shadows or hidden objects that standard monitors miss.

Q: Can it be mounted in portrait orientation?

A: Yes. The monitor’s VESA 200×200mm mount is compatible with portrait-oriented brackets (rated for 30kg weight capacity), making it ideal for specific monitoring needs: hallway surveillance (portrait mode covers more vertical space), elevator monitoring (matches the elevator’s aspect ratio), or narrow control rooms (saves horizontal space). The OSD menu includes a "Portrait Mode" option that rotates the display 90° clockwise or counterclockwise, and pixel burn-in protection (auto-shift) prevents damage from static feeds.

Q: What is the maximum distance for clear facial recognition?

A: When paired with a 4K IP camera (8MP, 3.6mm lens), the monitor can clearly display facial features from footage captured at distances up to 20-30 meters—depending on camera placement and lighting. For example, a 4K camera mounted 25 meters above a street can capture clear facial details of pedestrians, which the 50-inch 4K monitor reproduces without blurriness. For analog cameras (1080p), the maximum distance is 10-15 meters, as the camera’s resolution becomes the limiting factor.

Product Model : AE-LED50

Specification : AE-LED50-LY

Screen size : 50 inch

Display resolution : 3840*2160

Display ratio : 16:9

Brightness : 500cd/㎡(center point, typical value)

Contrast ratio : 3000:1

Viewing angle : 89/89/89/89 (Typ.)

Response time : 6.5ms (Gray To Gray)

Color depth : 1.07B (8-bit + Hi-FRC）

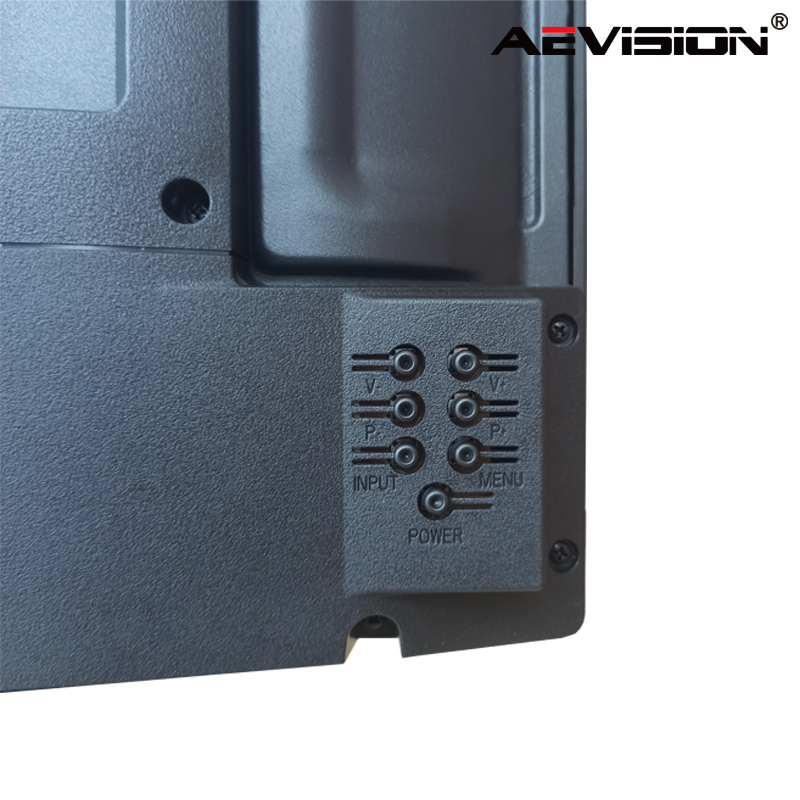

Control mode : Panel / remote control

Power input : 110V/220V 50Hz/60Hz

Input interface : HDMI/VGA/USB/DVI/BNC/RS232

Output port : RS232

Overall power consumption : 130W

Color : Black body

Material : professional fireproof iron case plastic frame (base is plastic)

Overall dimensions : 1133*664*71mm excluding the height of the foot (foot height 70mm)

Package size : 1263*796*215mm

Installation : base, wall hanging (200mm * 200mm)

Net weight / gross weight : 10.5kg/17.4kg

Working environment temperature : 20 degrees

Working environment humidity : 10%-90%RH
