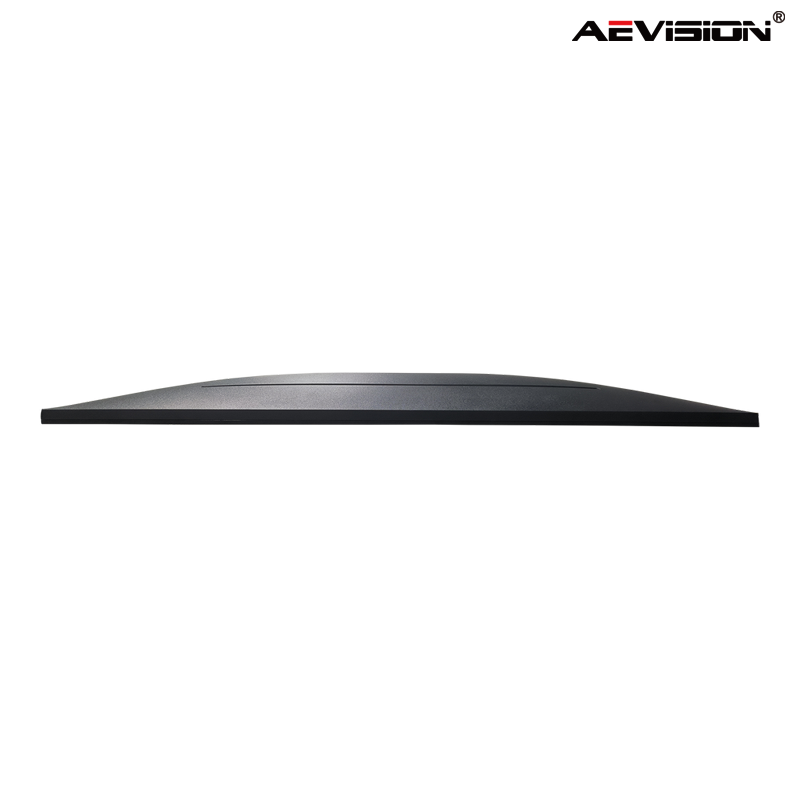

27-inch Professional CCTV Monitor Flagship Version

5 0 Reviews
The flagship CCTV monitor is equipped with a more textured casing and has always had excellent brightness performance. It has HDMI/VGA/USB interface, which is convenient for more devices to connect and use. At the same time, the USB interface can also be directly inserted into a U disk to play video. The better color performance also proves the value of its flagship model. Whether it is monitoring or office scenes, it is very suitable for use.
Availability:
Quantity:
  • AE-LED27-DY

  • AEVISION

1、HD:  1920 * 1080 is higher than the ordinary monitor resolution

2、Boot on the lower left screen automatically detect the resolution of the input signal is high or low, resolution with data

3、Clear:  exquisite realistic, true color, showing off is my true colors

4、Bright:  quality promotion, to be better

5、Use industrial screen, high brightness, high contrast

6、Standard regulated power supply with high precision, for industrial

7、Equipment design, support x 365 day uninterrupted work 24 hours a day

8、Using 10 bit figure like chip processing technology, high pixel progressive scan, image quality and exquisite realistic

9、Support intelligent 3 d noise reduction, to eliminate the ghosting, dynamic brightness, contrast color optimization techniques

10、Used the world's leading liquid crystal drive scheme, a precise reduction front-end signal, strong sense of reality

11、LCD has a small volume, low energy consumption, zero radiation, image stabilization, no influence on the eyes, natural health

12、5ms speed response, to avoid the image phenomenon of trailing in the high speed running.



Display

Model

LED27

Specification

AE-LED27-DY

Panel size

27 inch

Resolution

1920*1080(compitable3840*2160/30HZ)

Display ratio

16:9

Brightness

300cd/㎡(Central point, typical value

Contrast

3000:1

Visual angle

89/89/89/89 (Typ.)(CR≥10)

Response time

5ms(Gray To Gray)

Depth of color

16.7M

Function attribute

Control mode

Panel

Interface

Input power

12V/4A

Input interface

HDMI*1、VGA*1 、USB*1、 Audio output*1

Power dissipation

Total consumption

26W

Construction

Color

black

Material

Frame retardant plastic

Overall dimension

542*320*44mm excluding foot height (foot height 80mm)

Packing Size

675*185*435mm

Mounting method

Base  wall mounted(100mm*100mm)

Gross weight/Net weight

4.6kg/5.9kg

Out packing size

690*390*460mm 2pcs/ctn

Out packing weight

12.8kg

Working enviroment

Working enviroment temperature

Suitable temperature 20℃

Working environment humidity

10%-90%RH
